Wooden Pallet Production Line

The Wooden Shipping Pallet Production Line by New Dimensions consists of two main machines:

W.P.S 101 Machine – This machine cuts long wooden rods into blocks with high precision, ensuring a high output of blocks required for pallet assembly.
P.N 810 Machine – This machine assembles complete pallets by nailing wooden sheets to the blocks produced by the W.P.S 101 Machine. It operates with high speed and efficiency, producing over 50 pallets per hour with excellent dimensional accuracy.





New Dimensions Wooden Shipping Pallet Production Line. Uninterrupted Production.

Explore our advanced wooden pallet production line at New Dimensions, featuring two specialized machines designed for high-efficiency and precision:

Our pallet production line combines high-speed output with exceptional precision to meet the demands of large-scale industrial production.



Blocks Saw Machine W.B.S 101

W.P.S 101 Machine – This machine precisely cuts long wooden rods into blocks of exact length, producing a high volume of pallet blocks efficiently.

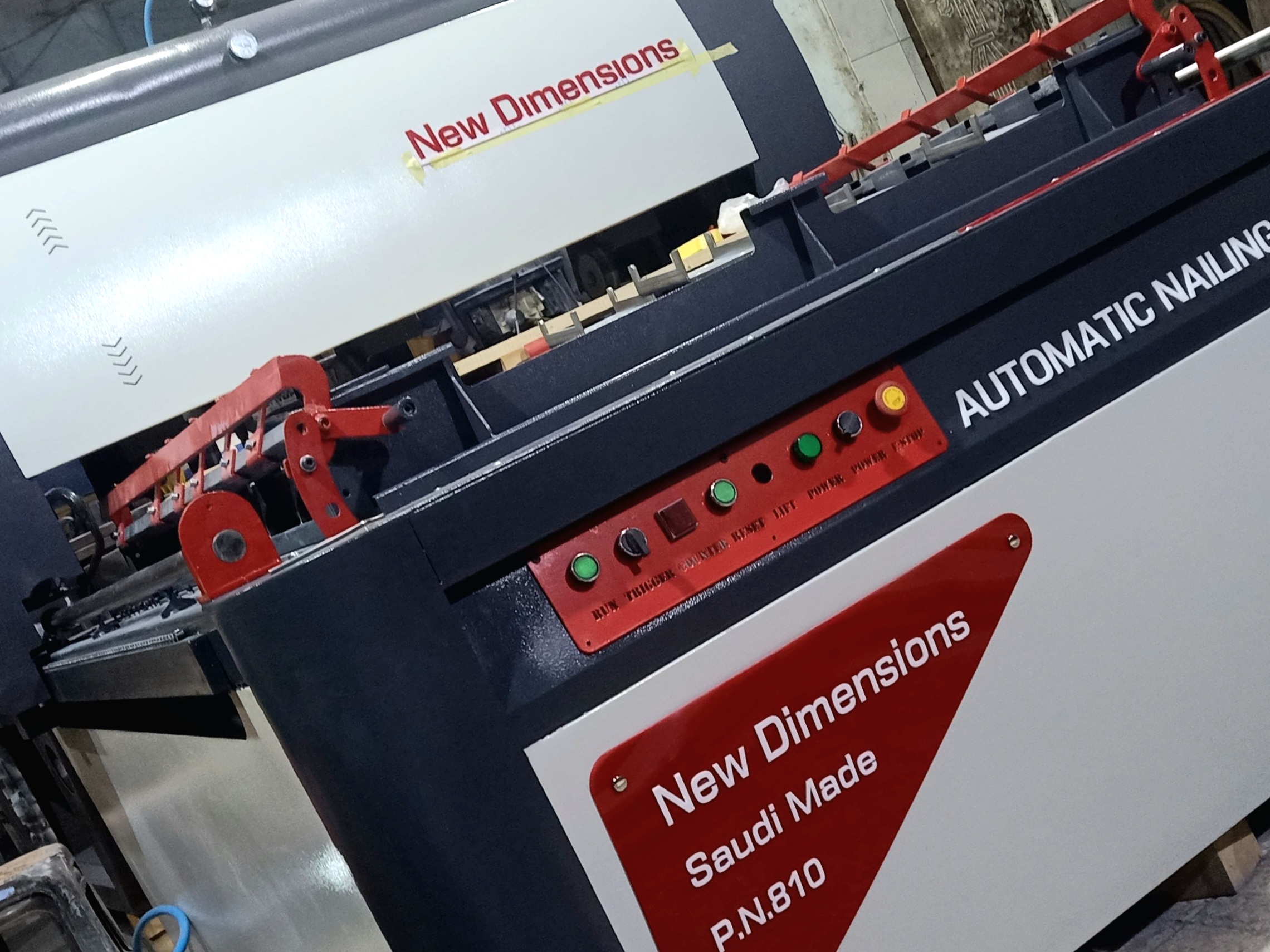

Pallets Nailling Machine P.N 810

P.N 810 Machine – As the final stage in pallet production, this machine assembles complete pallets by nailing wooden sheets and blocks from the W.P.S 101 Machine. It achieves a high productivity rate of 50 or more pallets per hour with outstanding dimensional accuracy.

Automatic blocks Saw machine

We are thrilled to announce the latest addition to our comprehensive lineup of industrial machinery products - the Wooden Blocks Saw (W.B.S). This state-of-the-art, fully automatic machine is designed to revolutionize the process of cutting long square sections of wood or aluminum with unparalleled precision and efficiency.




Power = 5.5kw .7hp
Voltage= 380V
Weight=450kg
Saw blade diameter=400mm// Teeth =120//Kerf - 4.6mm
Workable range=The length of wood must be within 1500mm
Width within 200mm, height within 120mm
The work efficiency=1500-1800 Block/hour
Dimensions=1700*1250*1400mm



Show Your Work

Abaad W.B.S 101 wood and aluminum cutting full automatic machine

Automatic Cutting block machine

Looking for unparalleled efficiency and speed in pallet production? "New Dimensions" presents an advanced, fully automated pallet production machine, capable of producing around 40 pallets per hour! 🚀

The "New Dimensions" machine combines cutting-edge technology with full automation, saving you time and significantly boosting productivity. With an innovative and user-friendly design, you can achieve top production levels with minimal effort and exceptional quality.



Specifications Pallet Production Machine

Machine Dimensions: 125 cm × 160 cm
Weight: 400 kg
Productivity: 40 pallets per hour
Pallet Size: 100 cm × 80 cm





Wooden blocks cutting saw

Fully automated pallet production machine
